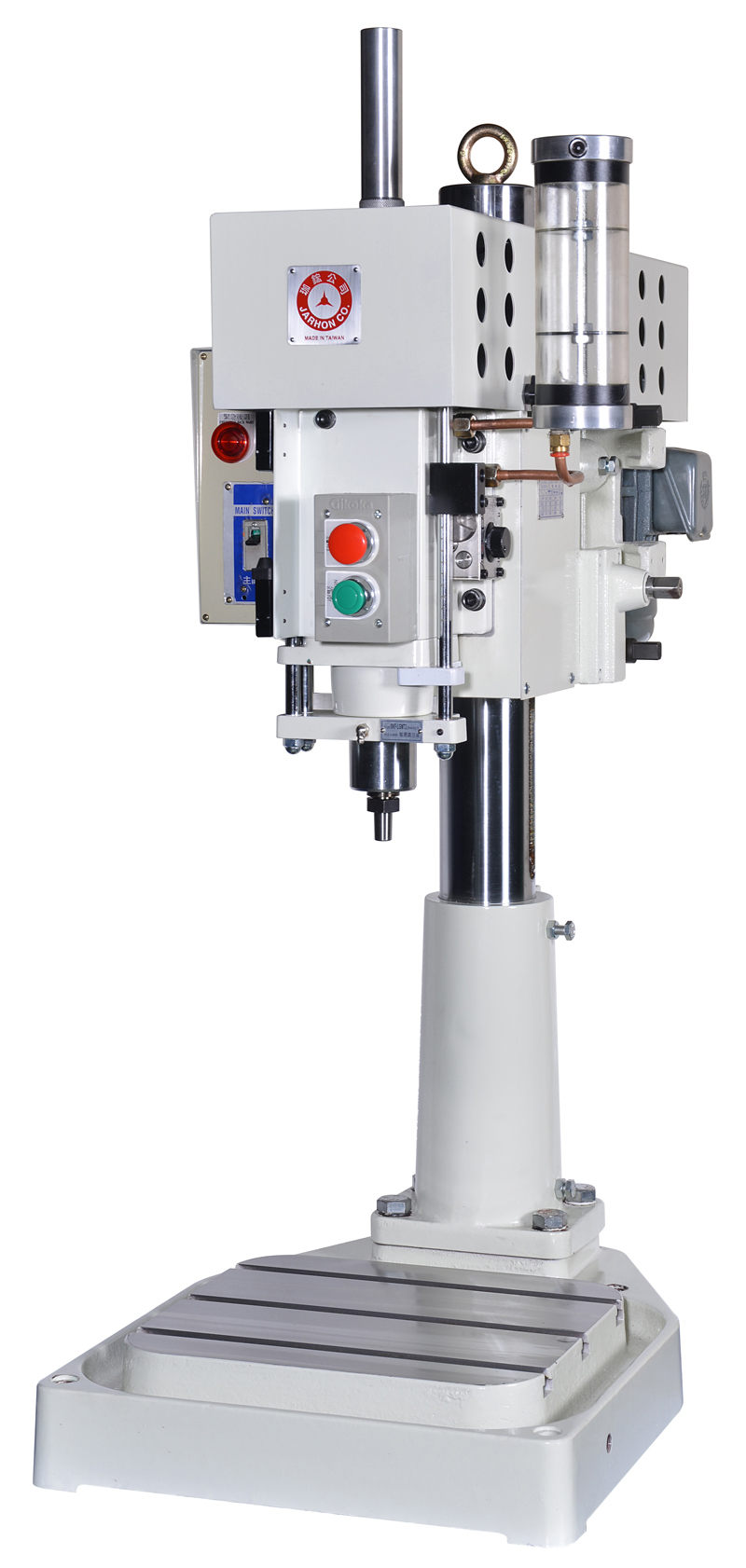

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanPneumatic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Pneumatic Auto. Drilling Machine
Product ID: JD-13016Inquiry
- Pneumatic convert to hydraulic feeding, suitable for light cutting.
- Available on processing reaming, drilling, and countersink...etc.
- Ideal to equip with small-type multi-spindle drilling head to enhance production efficiency.
- Main spindle drilling deep hole is ± 0.02mm tolerance.
Feature
EXAMPLE / MOBILES AND MOTORCYCLES PARTS MULTI-SPINDLE BORING
- Ideal to light cutting drilling processing. pneumatic and hydraulic switching function contains convenience of the former and the steadiness of the later.
- Ideal to mate with small-size multi-spindle drilling head.
- Applicable to reaming holes and inverted counter sink.
Specification
| JD-13016 | ||||||
| Main spindle max. stroke(mm) | Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | |
| 130 |
100 |
Ø2~Ø16 |
ER-32 JT-6(multi-spindle) |
200~610 | 340x380 | |
| Motor | Main spindle speed (R.P.M) | Drilling power(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg) | |
| 50HZ | 60HZ | |||||
|
3HPx4Px8P |
337 495 675 682 990 1365 |
405 594 810 820 1188 1638 |
Pneumatic 5 |
120x66x138 (LxWxH) |
about280 | 340 |
