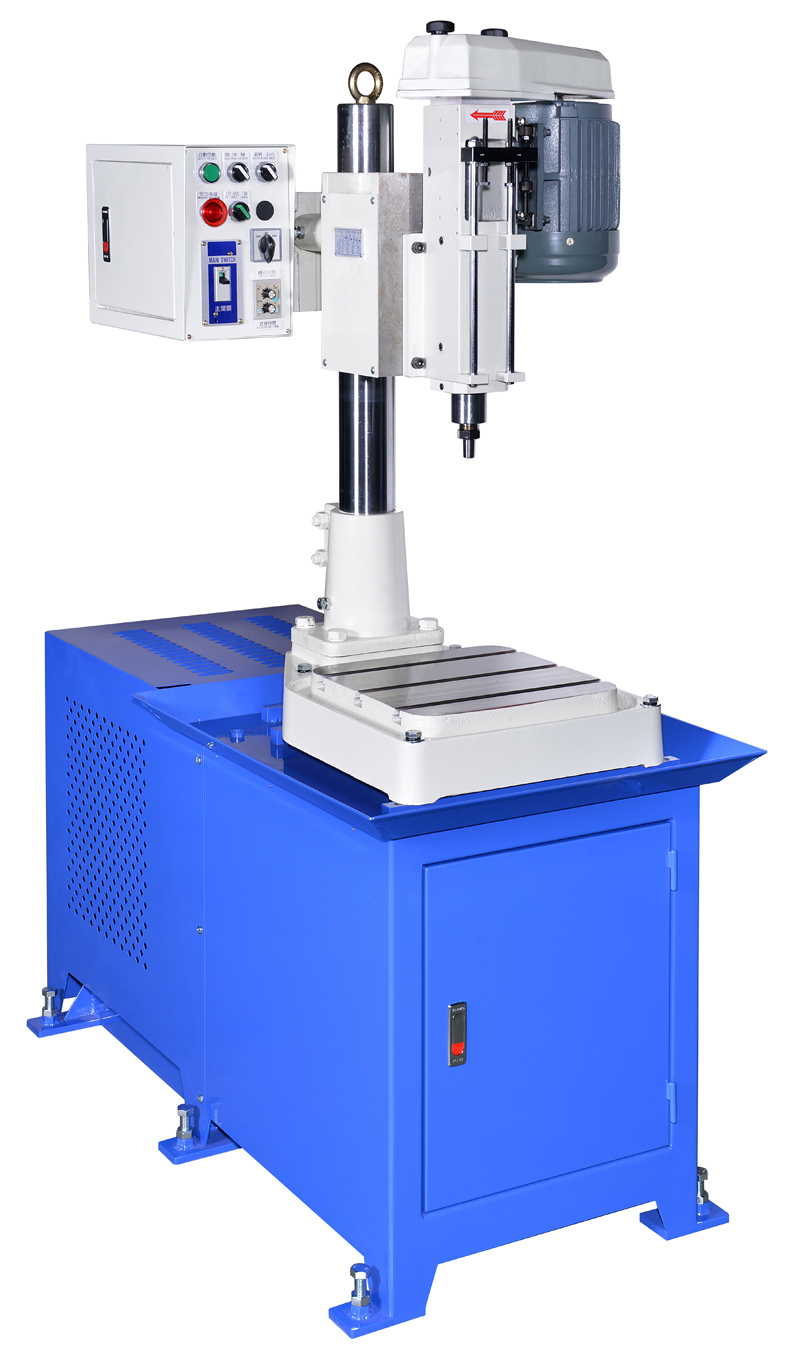

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanHydraulic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Hydraulic Auto. Drilling Machine
Product ID: JD-8510HInquiry
- Patented hydraulic system"Auto. discharging chips","Auto. breaking chips" device-optional attachment.
- Ideal to equip with multi-spindle drilling head to enhance production efficiency.
- Available on reaming, more suitable for deep hole drilling.
Feature
EXAMPLE / HYDRAULIC AUTO DRILLING MACHINE WITH MULTI-SPINDLE MACHINE AND MOULD UNIT
- Install with multi-spindle machine, simultaneously drilling and processing several work pieces, elevate the production efficiency.
- The multi-spindle machine with guiding hole plate and mould unit to achieve the precise quality
- Applicable to reaming, drilling holse and inverted counter sink.
- Patented hydraulic system "auto rejected chips" ; "auto breacking chips" device, optional attachment for special function.
Specification
| JD-8510H | ||||||
| Main spindle max. stroke(mm) | Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | |
| 85 |
80 |
Ø1~Ø10 |
ER-20 JT-6 (With multi-spindle) |
120x445 | 340x340 | |
| Motor | Main spindle speed (R.P.M) | Drilling power(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg) | |
| 50HZ | 60HZ | |||||
|
2HPx2Px4P |
696 999 1392 1428 1998 2856 |
835 1198 1670 1713 2396 3426 |
Hydraulic 15 |
151x78x192 (LxWxH) |
about 395 | 470 |
