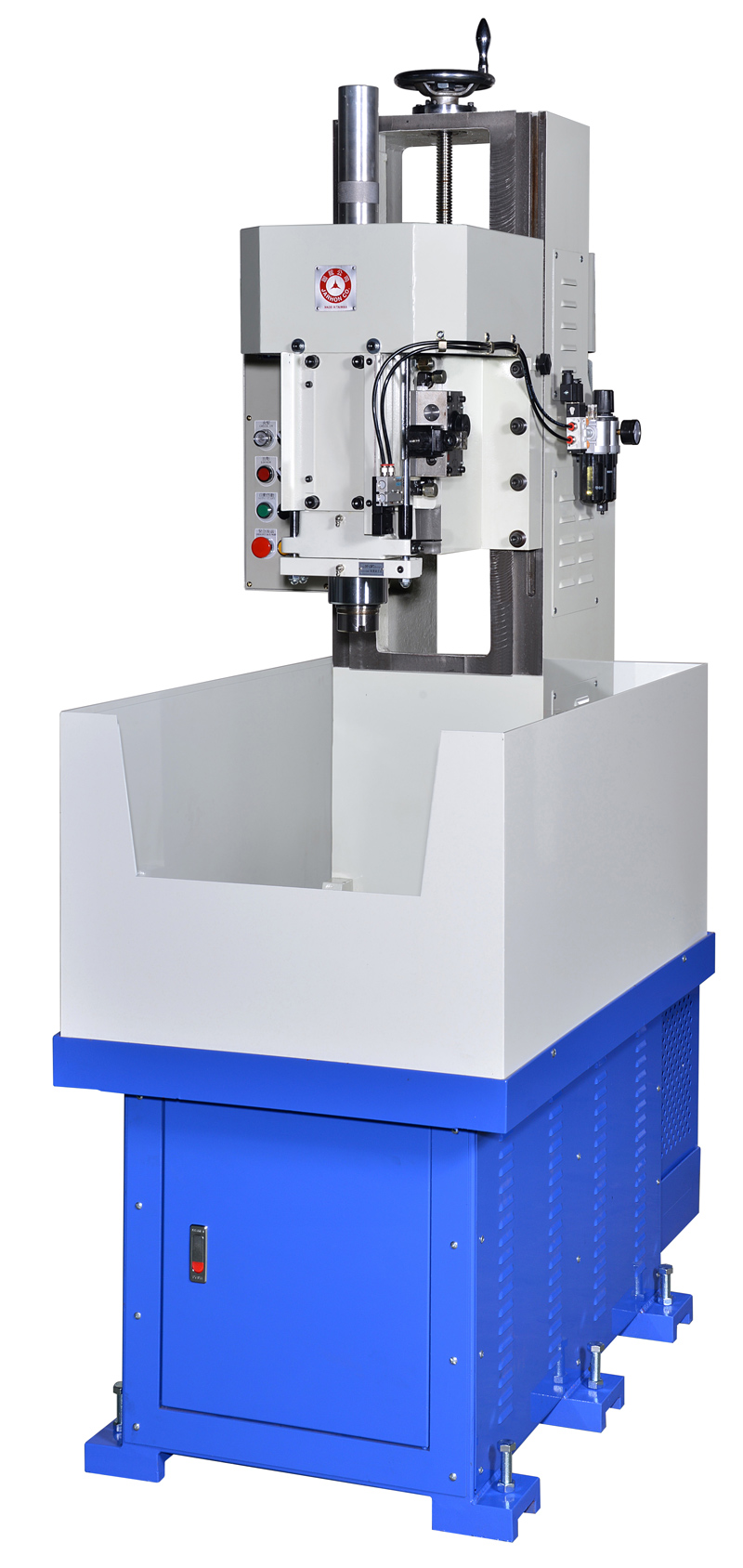

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanHydraulic Auto. Drilling Machine Home > Drilling Machine Series > Vertical Type > Hydraulic Auto. Drilling Machine
Product ID: JD-15035HInquiry
- Special design for powerful drilling,can option other functions like: auto.discharging chips,center coolant...etc.
- Long throat depth and up-and-down moveable distance is just right to large-size work pieces, large-size moulds, and also the drilling processing of large-size multi-spindle drilling
- Ideal to equip with large size, powerful multi-spindle drilling head to enhance production efficiency.
- Increase box column and strengthen structure can bear heavy processingmachine head won't lean backward.
Feature
EXAMPLE / MOBILES AND MOTORCYCLES PARTS MULTI-SPINDLE DRILLING PROCESSING
- The fixed type drilling head equipped with the movable type guide hole's plate the working accuracy will be to increase a lot.
- The regulating time can be reduced, that will make an easy operation.
Specification
| JD-15035H | ||||||
| Main spindle max. stroke(mm) | Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size (mm) | |
| 150 |
130 |
Ø35 |
ER-40 MT-4# |
420~720 | 400×500 | |
| Motor | Main spindle speed (R.P.M) | Drilling hole capacity(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg) | |
|
5HPx4P |
Appoint one section of speed The max 1500 R.P.M. (Can be equipped with converter) |
Hydraulic 25 |
166(L)×84(W)×246(H) |
about 1007 | 1100 | |
