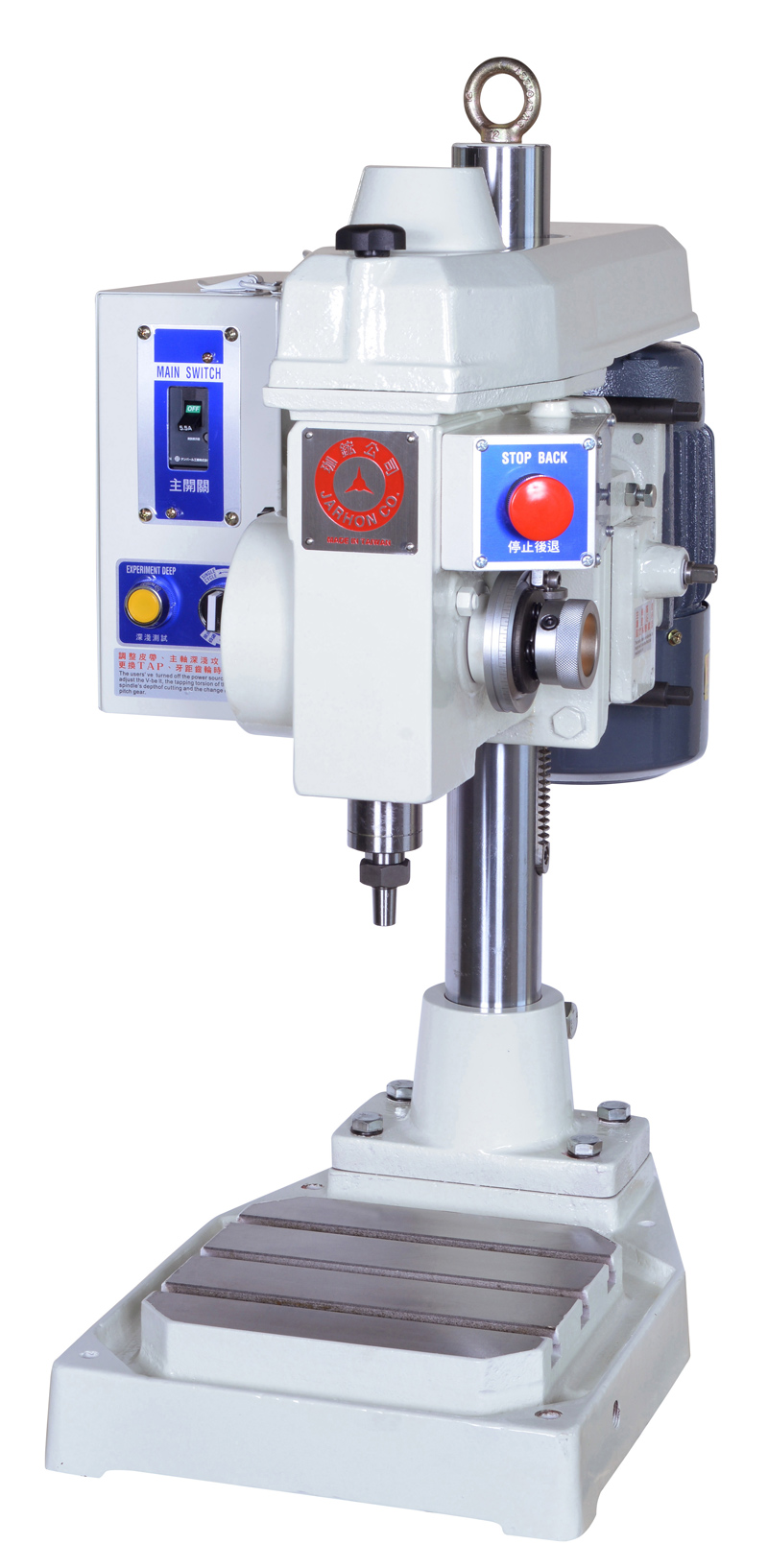

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanGear-Pitch Type Auto. Tapping Machine Home > Tapping Machine Series > Vertical Type > Gear-Pitch Type Auto. Tapping Machine
Product ID: JT-4508Inquiry
- Installed an isolated cooling fan in the interior of motor to dissipate heat. Make the machine can be operated continuously,steady and durable.
- The vertical column is enlarged (60mm),vertical column is solid and treated by tempering to get rid of stress, surface is chrome plated, wear resisting and no rust.
- High speed rotation continuously which can rotate 50 times/per Minute.
- Free to exchange tiny pitch.
- Quick and easy to change gear pitch and collet.
- Gear drives by one side teeth so won't have gap there.
- The rotation of gear is slow, so the gear won't get wear.
- Because one rotate one pitch, it can process perfect thread and prolong the TAPs life.
- The workpiece won't be lifted while the spindle retracting, so don't need to keep pressure on the workpiece, only need to avoid anti-rotation when tapping. This can simplify the fixture and make cost down.
Feature
EXAMPLE / TAPPING MACHINE EQUIPPED WITH THE MULTI-SPINDLE TAPPING HEAD & THE INDEXING DISK.
- The multi-working stations can stagger the mini-distance of the hose's position, then matches the multi-spindles to increase productive efficiency.
- It spends the low cost to get higher productive efficiency, so it doesn't need to special order of a proffessional machine.
- It can avoid the loss to make the trouble that the working piece didn't be tapped.
Specification
| Vertical type JT-4508 (Weight about 120kg) | |||||||
| Main spindle max. stroke(mm) | Type of the front side of Main spindle(mm) | Diameter of thread(mm) | Up and Down moving distance of the head(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | ||
| 45 |
JT-2/CT-12 攻牙筒夾 |
Ø2~Ø8 Less than (Ø10) |
260 | 350 |
225x230 |
||
| Motor | Main spindle speed (R.P.M.) | Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Packing dimension(cm) | Gross Weight(kg) | ||
| 50HZ | 60HZ | Range of TPI | mm | ||||
|
3PH 4P 0.37KW (1/2HP) |
1340 760 420 |
1600 900 500 |
80 72 64 60 56 48 44 40 36 32 28 27 26 24 20 19 18 (16) |
0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9 1.0 1.2 1.25 (1.5) (1.75) |
M3x10 spindles M4x5 spindles M5x2 spindles |
75x54x96 (LxWxH) |
140 |
