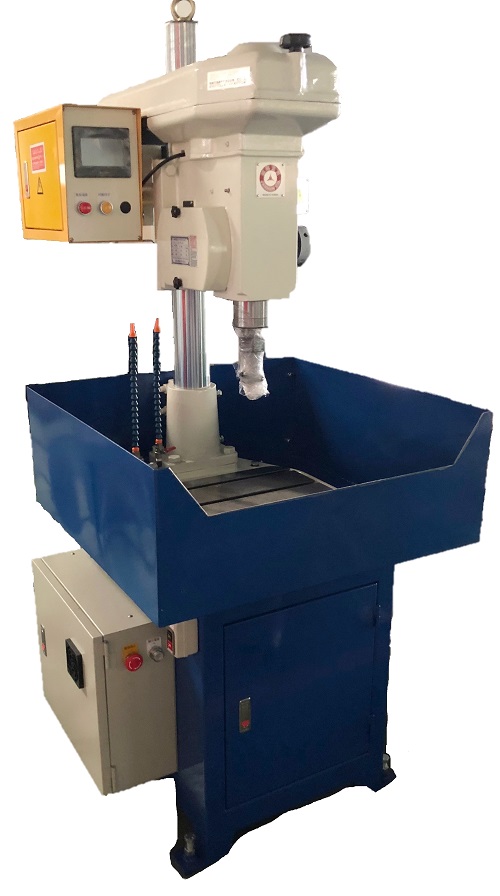

adheres to the concept of "keeping quality" and "doing still better" to manufacture the excellent quality machines in Taichung, TaiwanServo Numerical Control Tapping Machine(Gear-Pitch) Home > Servo Numerical Series > Servo Numerical Control Tapping Machine > Servo Numerical Control Tapping Machine(Gear-Pitch)
Product ID: JT-6532NCInquiry
- Numerically control main spindle speed and tapping depth. Repeatability ±0.1mm.
- Servo motor attached with HMI., it's convenient to set and operate.
- With functions of general tapping, blind-hole tapping, small-hole tapping and peck tapping, etc.
- It can connect and handshake with other mechanical equipments.
Specification
| 直立型 JT-6532 NC | |||||||
| Main spindle max. stroke(mm) | Type of the front side of Main spindle(mm) | Diameter of thread(mm) | Up and Down moving distance of the head(mm) | Distance between the main spindle and the table(mm) | Working table size(mm) | ||
| 65 |
MT-3# |
Ø10~Ø32 |
450 | 190~630 |
340x380 |
||
| Servo motor | Main spindle speed (R.P.M.) | Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Packing dimension(cm) | Gross Weight(kg) | ||
| Range of TPI | mm | ||||||
|
3 KW ~ 3.5 KW
|
Max. 500/ 375 |
19 18 16 14 13 12 11 10 9 8 7 |
1.25 1.5 1.75 1.8 2.0 2.4 2.5 3.0 3.5 |
Ø10x10 spindles Ø16x4 spindles Ø20x2 spindles |
00x00x00 (LxWxH) |
000 | |
