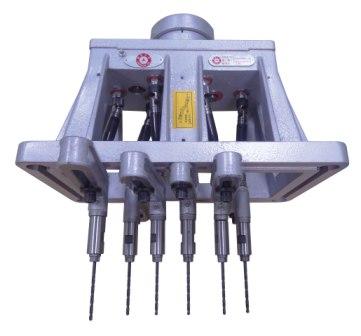

The distance of the hole is a straight line or the oblong,please use a square universal spindle to do the job, that will avoid the shift leg to extend a long distance to be lacking force, it's usage is as same as the round type universal spindle.(It'll try to match the working hole's distance to make design.)
For the life time of universal coupling please does not move over 15° range, it equals within 30mm of the front back, left & right sides of the vertical position.
Feature
- Suitable for the production of the small amounts or diverse,Can be adjust and easy to use.
- It can match the rapid disconnecting type universal pulling head or the flexible shaft's feet to let the multiple shafts avail to get have a wide range.
- Please e-mail or phone us to consult with a special size of the requirement.

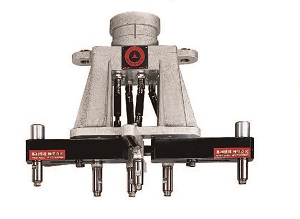

- Can equip with Extension Spindle.
Specification
| Model | Collet | Maxinum Drilling Capacity | Lowest Distance | Max. Range of Centers | Spindle |
| US-100x165 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 29 29 |
100x165 | 3-10 |
| US-120x200 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 29 29 |
120x200 | 4-12 |
| US-120x300 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 29 29 |
120x300 | 6-14 |
| US-170x300 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
170x300 | 6-16 |
| US-170x490 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
170x490 | 6-16 |
| US-220x380 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
220x380 | 10-16 |
| US-270x330 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
270x330 | 10-16 |
| US-270x480 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
270x480 | 10-24 |
| US-510x610 |
C-5 C-6 C-9 C-12 |
5.0 6.0 8.0 11(Heavey duty type) |
13 20 30 30 |
510x610 | 26-40 |
